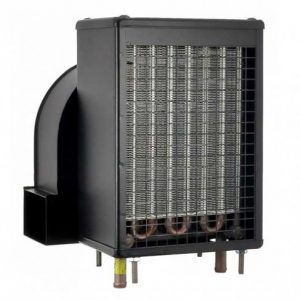

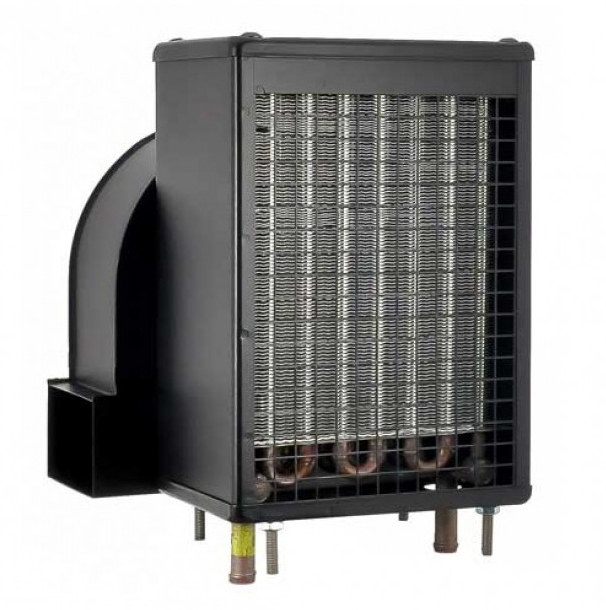

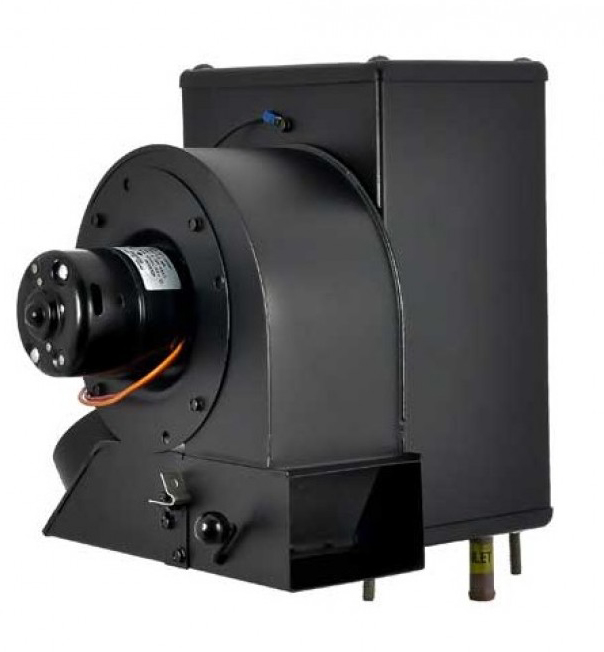

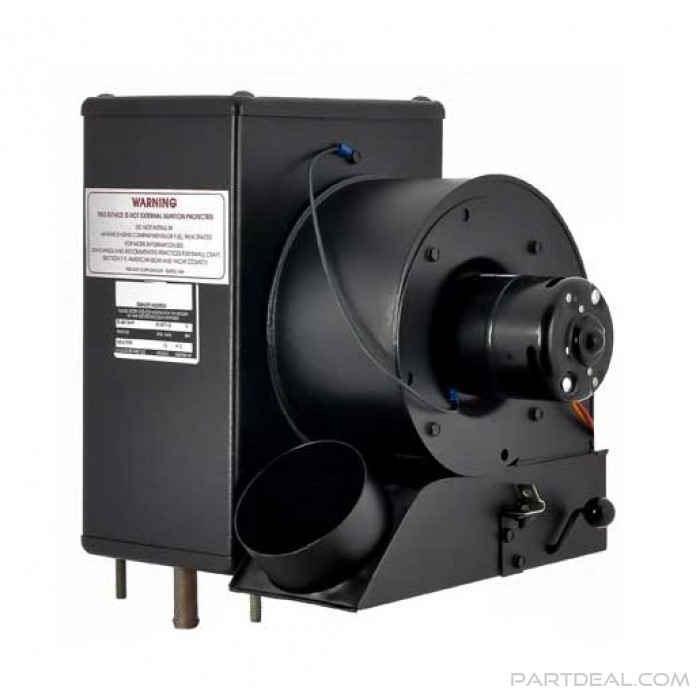

The R-4013H is a compact, versatile, and high-output heater/defroster. Like other Red Dot heaters, the tube and fin coil design allows mounting in any position. A diversion door can be manually or cable-actuated to control defrost and heat output. An optional adapter to the heat outlet turns the R-4013 into a dual defroster or multi-compartment heater.

PRODUCT SPECIFICATIONS:

• Part No.: R-4013HP (12V)
• Voltage: 12V
• Current Draw: 11 amps @ 13.6 VDC
• Weight: 15.7 lbs. (7.1 kg)
• Air Flow: 185 CFM (314 m3/h)
• BTU’s: Heating – 20,000 BTU/Hr @ 100°F (5.7 kW @ 37.8°C) air temp. rise

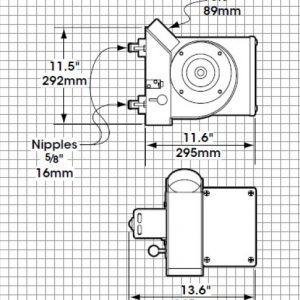

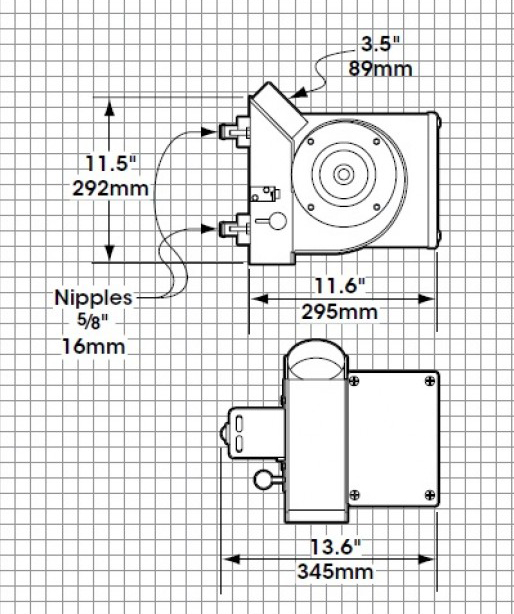

• Height: 11.5”
• Length: 11.6”
• Width: 11.6”
• Inlet: 5/8”
• Outlet: 5/8”
• Fitting Style: Push-on Heater pipe
• Mount Type: Universal
• Mounting Type: Side exit
• Auxiliary Heater Unit
