Compressor 75R81502

$273.86

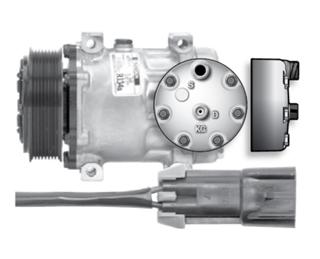

Red Dot Compressor – 12V SD7H15 KC 119MM PV8 Direct 4667

PRODUCT SPECS:

  • Red Dot Part No.: 75R81502
  • Red Dot Factory Part No.: RD-5-11326-0P
  • Sanden Part No.: 4667
  • Air Source Part No.: 5707
  • Alliance Part No.: ABP N83 304187, ABP N83 304263, ABP N83 304596, ABP N83 304973
  • Bergstrom Part No.: 525997
  • Carrier A/C Part No.: 501-298
  • Case/Case – IH Part No.:
  • Climatech Part No.: LE1085
  • Ford Part No.: 4C4H-19703DA
  • IHC – Navistar Part No.: 3579878C1
  • Mack Part No.: 4379-RD5113260
  • Paccar Part No.: F69-6001-114, F69-6002-114, K318-103
  • Volvo Part No.: 85100866, RDHRD5113260P
  • Application: Multi Fit Applications
  • Volts: 12V
  • Sanden Model Type: SD7H15
  • Mount Type: Direct Long
  • Head Type: KC
  • Head Fitting Position: Horizontal O-Ring
  • Head Fitting Size: 3⁄4 x 7⁄8
  • Cubic Inches: 9.5
  • Clutch Type: 4.7” (119mm) Poly 8
  • Gauge Line: 61mm
  • Connector Type: Metripak
  • No. of Wires: 2
  • Clutch Shaft Type: Key
  • Refrigerant Type: R134a



Categories: , ,
Description

Red Dot 75R81502 Sanden Compressor

Model: 7H15

Head: KC

Voltage: 12

Mount: Direct

Head Fitting Position: Horizontal O-Ring

Head Fitting Size: 3⁄4 x 7⁄8

9.5 Cubic Inches

Sanden: 4667

Clutch: 4.7” (119mm) Poly 8

R134a

IHC – Navistar All with OEM Part No. 7H15HD, 12V, PV8 Groove, 119MM, 2 Wire, KC Head, Direct Mount. OEM# 3579878C1

Kenworth All with OEM Part No. 7H15HD, 12V, PV8 Groove, 119MM, 2 Wire, KC Head, Direct Mount. OEM# LE1085, K318-103, 4667SAN, F69-6002-114

Peterbilt All with OEM Part No. 7H15HD, 12V, PV8 Groove, 119MM, 2 Wire, KC Head, Direct Mount. OEM3 LE1085, 4667SAN, K318-103, F69-6002-114

Western Star Constellation, Heritage, 3800, 4800, 4900, 5800, 5900, 6900. 7H15, 12V, PV8 Groove, 119MM, 2 Wire, KC Head, Direct Mount. OEM# 61104-3430, 4667, 4897

CROSS REFERENCE:
1401117
140131
402876
F69-6002-114
K318-103
LE1085
58702
ABP N83 304973
K318-103
4379-RD5113260
5707
3579878C1
ZGG705016
20-04667
4667
F69-6002-114
K318-103
RD5113260P
4667
300-4487
RDHRD5113260P





Additional Information
Weight 20 lbs
Dimensions 12 × 8 × 8 in
Manufacturer

RedDOT
Product ID

75R81502
