$355.85

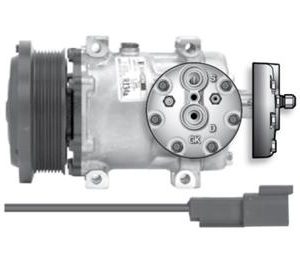

Red Dot 75R7322 Compressor RD-5-11218-0P

Tube-O-Ring

OEM# ET210L-25237C

  • Volts: 12V
  • Fitting Size: 1” – 14
  • Clutch Type: 6”, 2 Groove, 1⁄2”
  • Gauge Line: 1 5⁄8”
  • No. of Wires: 2
  • Connector Type: Metripak
  • Red Dot Clutch Part No.: 75R1302
  • Red Dot Factory Clutch Part No.: RD-5-9456-0P
  • Bore: 1.875 (47.6mm)
  • Stroke: 1.876 47.4mm)
  • Displacement per Revolution: 10.3 cu. in. (170cc)
  • Number of Cylinders: 2
  • Maximum Allowable Continuous R.P.M. (Normal Operating Conditions): 6,000
  • Refrigerant: R-12/134A
  • Oil (PAG): 10 fl. oz. (200cc)
  • Weight: 14.6 lbs. (6.6 kg.)
  • Rotation: Clockwise or Counter Clockwise
  • Note: OE Replacement, Standard Duty
Description

Fitting Size: 1” – 14

OE Replacement, Standard Duty

Clutch Type: 6”, 2 Groove, 1⁄2”

Gauge Line: 1 5⁄8”

Connector Type: Metripak

LH Suction, 1″-14 Discharge, 1″-14 Suction, 12V, 2A Groove, 6″, 2 Wire

Kenworth All with OEM Part No. OEM# LC2120, ET210L-25237C

Peterbilt All with OEM Part No. OEM# LC2120, ET210L-25237C

Western Star Constellation, Heritage, 3800, 4800, 4900, 5800, 5900, 6900. OEM# ET210L-25237C

CROSS REFERENCE:
1402006
ET210L-25237C
LC2120
68021
ABP N83 304141
4379-RD5112180
5266
RD5112180P
03-3333E
300-7179



Additional Information
Weight23 lbs
Dimensions8 × 8 × 12 in
Manufacturer

RedDot

Product ID

75R7322
