Compressor 75R81732 - Semi Truck Parts and Accessories

704-312-2526

0
  • No products in the cart.
Total:$0.00

Shop

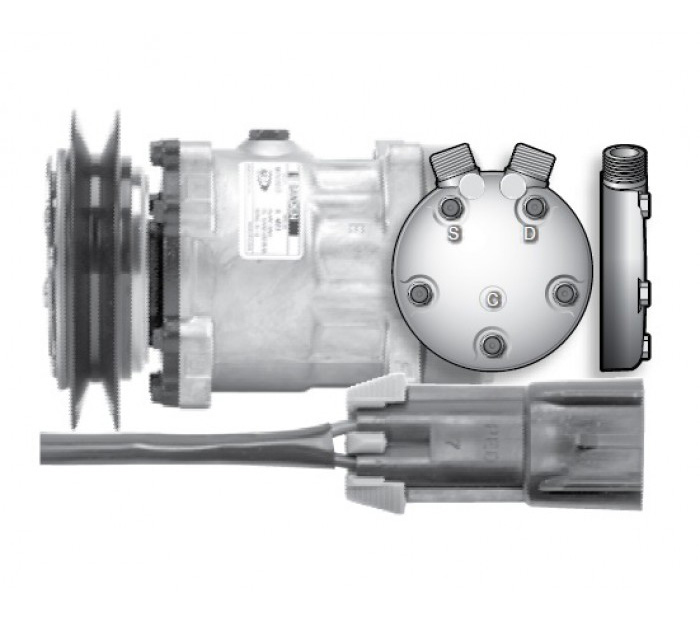

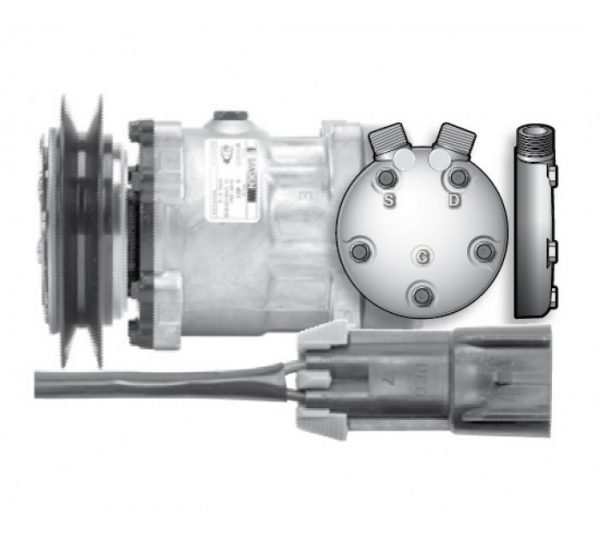

Product image Red Dot 75R81732 compressor

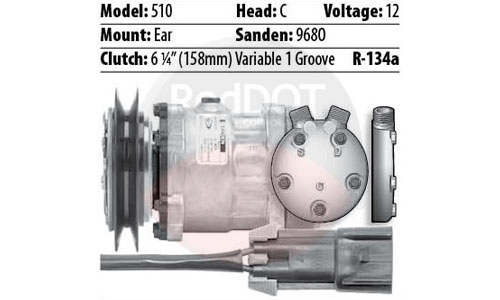

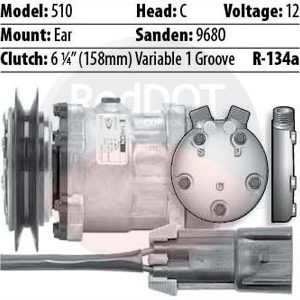

Product image Red Dot 75R81732 compressor with specs

$299.32

Red Dot Compressor SD7H15 C 158MM C1 12V Ear Mount

PRODUCT SPECS:

  • Red Dot Part No.: 75R81732
  • Red Dot Factory Part No.: RD-5-11350-0P
  • Sanden Part No.: 4747
  • Alliance Part No.: ABP N83 304983
  • Mack Part No.: 4379-RD5113500
  • Volvo Part No.: RDHRD5113500P
  • Volts: 12V
  • Sanden Model Type: SD7H15
  • Mount Type: Ear
  • Head Type: C
  • Head Fitting Position: Vertical Tube-O
  • Head Fitting Size: 1″ – 14
  • Cubic Inches: 9.9
  • Clutch Type: 6 1⁄4” (158mm) A1 Groove
  • Gauge Line: 40mm
  • Connector Type: Metripak
  • No. of Wires: 2
  • Clutch Shaft Type: Key
  • Refrigerant Type: R-134a



Categories: , ,
Description

Red Dot 75R81732 Sanden Compressor

Model: 7H15

Head: C

Voltage: 12

Mount: Ear

Vertical Tube-O

Head Fitting Size: 1″ – 14

9.9 Cubic Inches

Sanden: 4747

Clutch: 6 1⁄4” (158mm) Variable 1 Groove

Volvo/White GMC All with OEM Part No. 7H15, C head, ear mount, variable groove 6 1/4″ diameter (158mm). OEM# V1110148

CROSS REFERENCE:
1401024
402076
58034
ABP N83 304983
4379-RD5113500
5919
3541235C91
20-09680
RD5113500P
9680
300-4112
RDHRD5113500P

Additional Information
Weight 20 lbs
Dimensions 12 × 8 × 8 in
Manufacturer

RedDOT
Product ID

75R81732
