Shop

$355.85

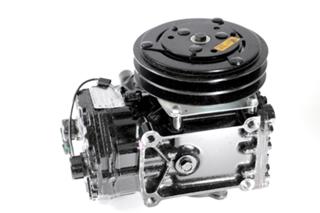

Red Dot 75R7312 Compressor

PRODUCT SPECIFICATIONS:

Red Dot Part Number: 75R7312
Model OE no.: ET210L-25073C
Fitting Size: 1” – 14
Note: Note 5
Clutch Type: 6”, 2 Groove, 1⁄2”
Gauge Line: 1 5⁄8″
Number of Wires/Connector: 1, Weatherpak
Clutch Pat No. and Factory Number: 75R1202/RD-5-4972-1P
Bore: 1.875 (47.6mm)
Stroke: 1.876 47.4mm)
Displacement per Revolution: 10.3 cu. in. (170cc)
Number of Cylinders: 2
Maximum Allowable Continuous R.P.M. (Normal Operating Conditions): 6,000
Refrigerant: R-12/134A
Oil (PAG): 10 fl. oz. (200cc)
Weight: 14.6 lbs. (6.6 kg.)
Rotation: Clockwise or Counter Clockwise
Factory No.: RD-5-11217-0P

Categories: ,
Description

Red Dot 75R7312 Compressor RD-5-11217-0P

TUBE-0-RING, 12 VOLT

OEM# TUBE-0-RING, 12 VOLT

OE Replacement, Standard Duty

Fitting Size: 1” – 14

Clutch Type: 6”, 2 Groove, 1⁄2”

Gauge Line: 1 5⁄8”

No. of Wires: 1

Connector Type: Weatherpak

Red Dot Clutch Part No. 75R1202

Kenworth All with OEM Part No. Tube-O, LH Suction, 1″-14 Discharge, 1″-14 Suction, 12V, 2A Groove, 6″, 1 Wire. OEM# LC1140, LC1015, ET210L-25073C

1995-02 Peterbilt All with OEM Part No. Tube-O, LH Suction, 1″-14 Discharge, 1″-14 Suction, 12V, 2A Groove, 6″, 1 Wire. OEM# LC1140, ET210L-25073C

Western Star Constellation, Heritage, 3800, 4800, 4900, 5800, 5900, 6900. Tube-O, LH Suction, 1″-14 Discharge, 1″-14 Suction, 12V, 2A Groove, 6″, 1 Wire. OEM#  ET210L-25073C

CROSS REFERENCE:
1402004
ET210L 25073C
68020
ABP N83 304101
4379-RD51121705262
RD511212170P
03-3033E
300-7178









Additional Information
Weight 23 lbs
Dimensions 8 × 8 × 12 in
Manufacturer

RedDot

Product ID

75R7312
