$20.40

Red Dot 71R8080 Expansion Valve

PRODUCT SPECS:

  • Red Dot Factory Part No.: RD-5-5862-0P
  • Air Source Part No.: 1620
  • Alliance Part No.: ABP N83 308005, ABP N83 308349, ABP N83 308045, ABP N83 308105
  • Bergstrom Part No.: 540022, 540027, 540172
  • Climatech Part No.: EA1015, EA1300, EA1410
  • DTAC Part No.: 826-003
  • Four Seasons Part No.: 38729, 38864
  • IHC – Navistar Part No.: 1691469C1, 1691469C2, 469475C1, ZGG709037, 469475C1
  • JBAR Part No.: 404893
  • Mack Part No.: 3230-218023, 4379-RD558620, 4379-RD55862-0
  • Parker Part No.: 031134-120
  • Truck Air Part No.: 12-3025, 12-3025A
  • Volvo Part No.: 176185, 176188, 3918219, 3949276, RDHRD558620P
  • Description: External Equalizer
  • Inlet: #6 (3 ⁄8”) Male O-Ring
  • Outlet: #8 (1 ⁄2”) Male O-Ring
  • Nut: 1 ⁄4” Male O-Ring
  • Equalizer Tube Length: 10”
  • Capillary Tube Length: 10”
  • Rating: 1 1⁄2 Ton

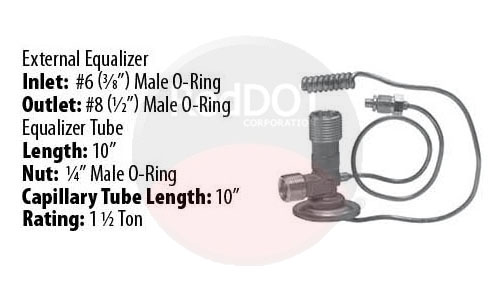

External Equalizer
Inlet: #6 (3/8″) Male O-Ring
Outlet: #8 (1/2″) Male O-Ring
Equalizer Tube
Length: 10″
Nut: 1/4″ Male O-Ring
Capillary Tube Length: 10″
Rating: 1 1/2 Ton



Description

1983-2000 IHC-Navistar 4000, 4070, 4070A, 4070B, 4100, 4200, 4300, 4300, 4400, 4500, 4600, 4700, 4800, 4900, 4954. Main unit, with O-Ring style valve. OEM# 1691469C2.

1982-1993 Mack All with OEM Part No. Main unit with Signet A/C. OEM# 3230-218023.

AGCO, AGCO-Allis 7580 Male O-Ring, 1 1/2 Ton, 10″ capillary length, 10″ equalizer tube length. OEM# 3380223M1.

Allis-Chalmers – All combine and tractor model series with OE#826-003 External Equalizer with O-Ring style valve. OEM# 826-003.

Case – All Series using OE#A42625, RD-5-5862-0, 469475-C1, 826-081. Tractors 500, 600 Series. Tractors 790, 1070, 1270, 1370, 1570 Series. External equalizer with male O-Ring with 10″ capillary length. OEM# A42625, RD-5-5862-0, 469475-C1, 826-081.

Caterpillar – All Series with OE#2G0401, 3E9343, RD-5-5862-0. Male O-Ring, 1 1⁄2 Ton, 10″ capillary length, 10″ equalizer tube length. OEM# 2G0401, 3E9343, RD-5-5862-0.

Deutz-Allis – All combine and tractor model series with external equalizer, OE#826-003.

Ford-New Holland (FNH) All combine and tractor model series with OE#826-003. Tractors TW 10, 15, 20, 25, 30, 35 Series. Expansion Valve / External Equalizer. Male O-Ring, 1 1⁄2 Ton, 10″ capillary length, 10″ equalizer tube length.

John Deere – All Loader / Tractor model series with OE#826-003. Combines 7700, 7720, 8820 series with OE#AR58482. Cotton Pickers 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965 series with OE#AR58482. Tractors 10 Series, 6010, 6110, 6210, 6310, 6410 models with OE#AR58482. Tractors 10 Series, 7010, 7210, 7410, 7610, 7710, 7810 models with OE#AR58482. Tractors 20 Series, 4020, 4320, 4520, 4620, 5020, 7020, 7520 models with OE#AR58482. Tractors 40 Series, 4040, 4240, 4440, 4640, 4840 models with OE#AR58482. Tractors 50 Series, 4050, 4250, 4450, 4650, 4850 models with OE#AR58482. Tractors 55 Series, 2955, 3055, 3155, 3255, 4055, 4255, 4455, 4755, 4955 models with OE#AR58482. Tractors 60 Series, 4560, 4760, 4960 models with OE#AR58482. Windrowers / Sprayers 4700, 4710, 4890, 4990 series with OE#AH137702.

Massey Ferguson – Tractor 3500 Series 3505, 3525, 3545 before serial #C21009 with OE#3380223M1. Male O-Ring, 1 1⁄2 Ton, 10″ capillary
length, 10″ equalizer tube length. OEM# 3380223M1.

VME – Tractor 175B, 175C series with OE#3380223M1, RD-5-5862-0. Tractor 275B, 275C series with OE#3380223M1, RD-5-5862-0. Male O-Ring, 1 1⁄2 Ton, 10″ capillary length, 10″ equalizer tube length. OEM# 3380223M1.

CROSS REFERENCE: 1620, 826-003, 1813003, 1813009, 404104, 404342, 540022, 540027, 540172, AC3206C, 71R8080, EA1015, EA1300, EA1410, E-80021, 909207, 38729, 38864, ABP N83 308045, ABP N83 308105, 404893, 1813003, 404104, 404110, 3230218023, 4379-RD558620, 1620, 1-2029, 1-9057, 207370, 1691469C1, 1691469C2, 16996846C2, 469475C1, EA1410, ZGG709037, RD-5-5862-0, RD-5-5862-0P, 12-3025, 12-3025A, 450-6801, 3918219, 176185, 3918219, 3949276, RDHRD558620P



Additional Information
Weight2 lbs
Dimensions4 × 4 × 4 in
Manufacturer

RedDOT

Product ID

71R8080
