$337.47

Red Dot 12V Auxiliary Heater

Crash/Fire/Rescue – Van – Bus



Categories: ,
Description

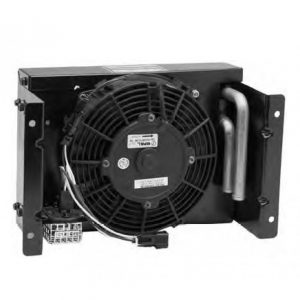

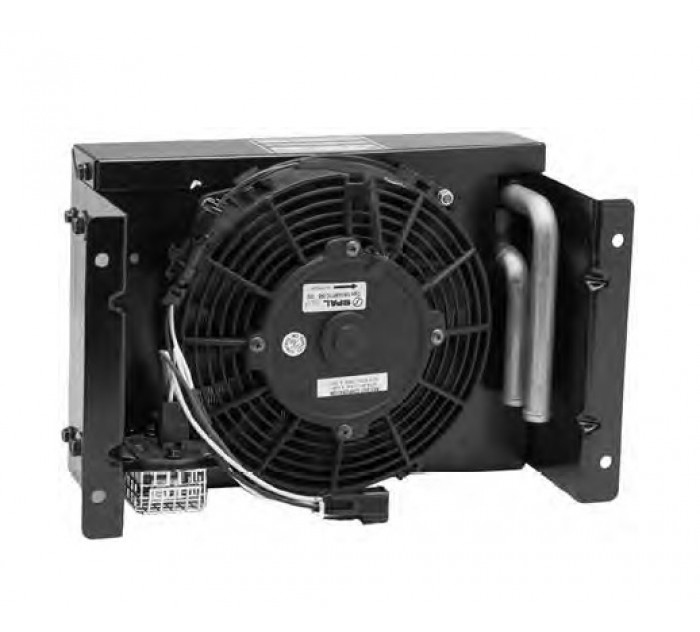

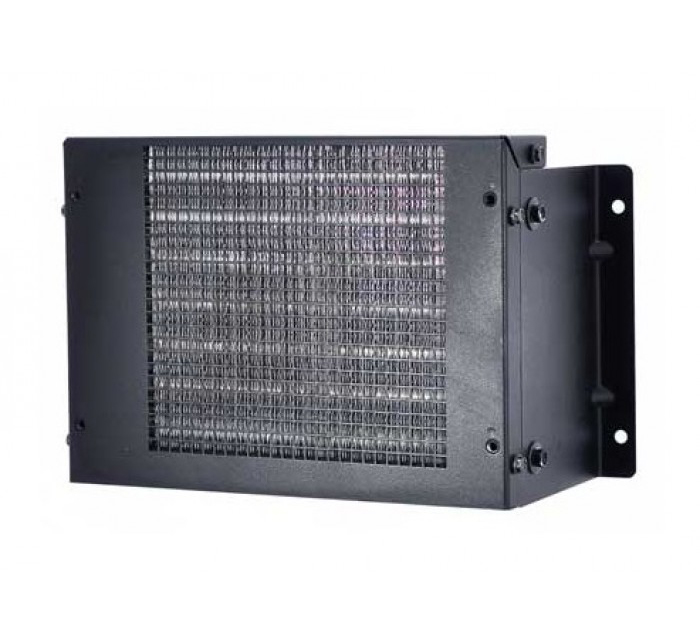

Designed for small spaces, the R-3540 delivers high capacity for its size. With a pancake fan design, this unit is quiet and moves close to 200 CFM of air. It has versatile mounting (flat or horizontal) and a resistor for variable speed control.

PRODUCT SPECIFICATIONS:

  • Voltage: 12V
  • Units: R-3540-2P (12 VDC)
  • Air Flow: 194 CFM (330 m3/h)
  • BTUs Capacity: 22,970 BTU/Hr @ 180°F (kw 6.73 @ 82.6°C) air temp. rise
  • Current Draw: 4.8 amps @ 13.6 VDC
  • Weight: 10 Lbs.

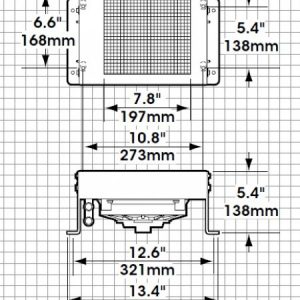

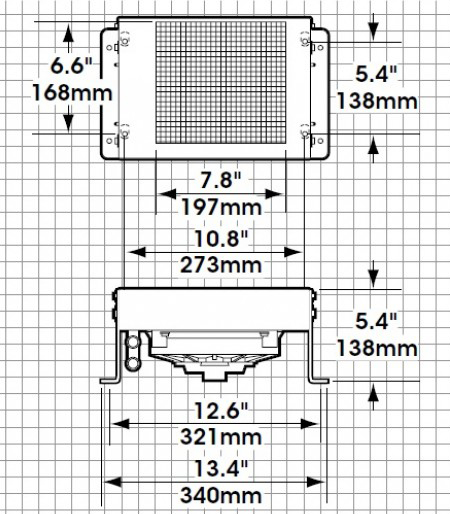

  • Height: 6.6”
  • Length: 12.6”
  • Inlet: 5/8”
  • Outlet: 5/8”
  • Rating: 22,970 BTU
  • Fitting Style: Push-on Heater pipe
  • Mount Type: Universal
  • Mounting Type: Rear exit
  • Product Name: Auxiliary Heater Unit
  • Width: 5.4”
Additional Information
Weight12 lbs
Dimensions15 × 16 × 10 in
