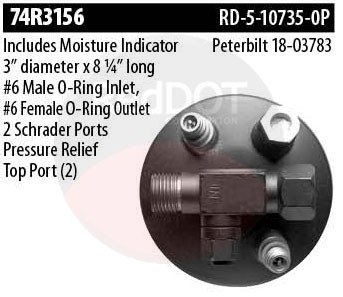

Product image Red Dot 74R3156 receiver drier top view
Product image Red Dot Peterbilt 18-03783 receiver drier top view with specs

$17.50

Red Dot 74R3156 Receiver Drier with Pressure Relief & Moisture Indicator

PRODUCT SPECS:

  • Length: 8 1/4”
  • Inlet: Male Insert O-Ring
  • Inlet Size: 3/8” #6
  • Outlet: Female Insert O-Ring
  • Outlet Size: 3/8” #6
  • Diameter (in.): 3”
  • Material: Steel
  • Product Name: Receiver Drier
  • Refrigerant Type: R12/R134a
  • O-Ring #1: 0011
  • Sight Glass Location: Top
  • Switch Port Type: (2) 1/4” Male R12
  • Notes: High Pressure Relief Valve – Side

Includes Moisture Indicator



Categories: , ,
Description

#6 male O-ring inlet and #6 female O-ring outlet

MEI Part No.: 7135

OEM Part No.: 22-37199-000, N83-319695

Alternate Part No.: 88456061, 74R3156

Application: Freightliner Trucks

Peterbilt 18-03783

Diameter: 3″

Height: 8 1/4″

2 top switch ports

CROSS REFERENCE: 7135, 7-7120, 1913002, 1917002, 402254, 402569, 232-8951, JA1920, E-804128, HV82200, 920062, 33322, 33470, 33476, 33533, ABP N83 319254, 1913002, 402569, 4379-RD5107350, , 7135, 1-1827, 1-1931, 426169C1, 37-13445, RD-5-10735-0P, RD-5-4958-0, RD-5-4958-0P, 07-0800, 825-4251, 176242, RDHRD5107350P



Additional Information
Weight 3 lbs
Dimensions 10 × 4 × 4 in
Product ID

74R3156
Manufacturer

RedDOT
