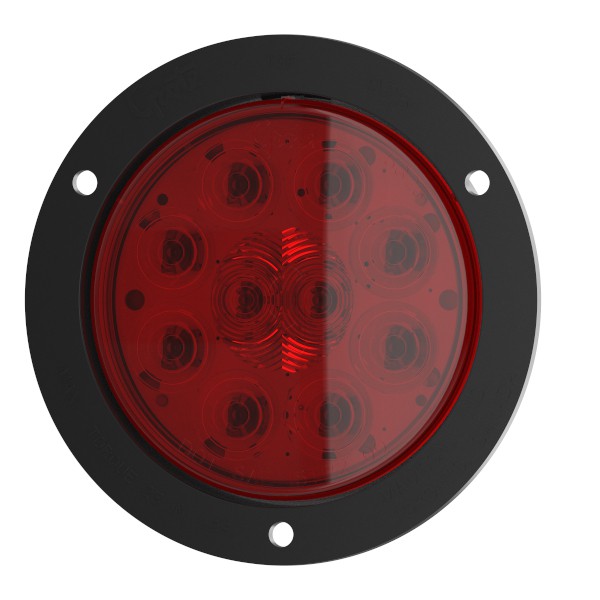

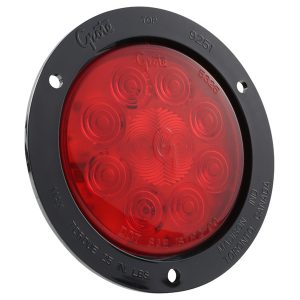

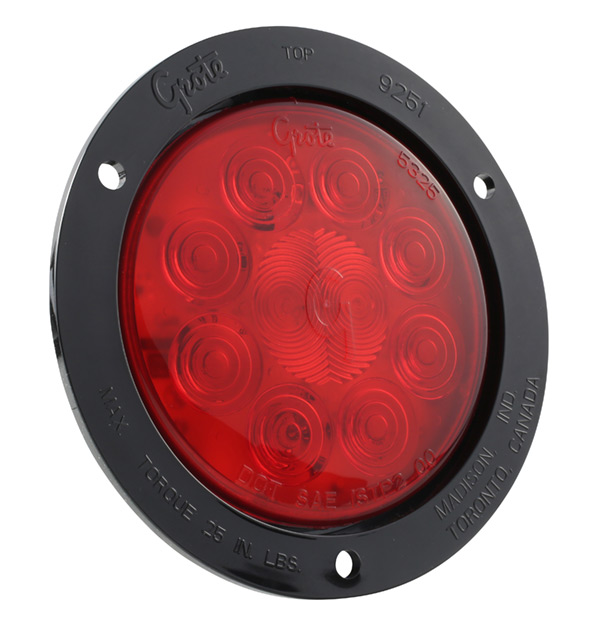

SuperNova® 4″ 10-Diode Pattern LED Stop / Tail / Turn Lamp

$30.26

SuperNova® 4″ 10-Diode Pattern LED Stop Tail Turn Lights – Red w/ Black Theft-Resistant Flange

MALE PIN STOP/TAIL/TURN:



Description

FEATURES & BENEFITS
• Lens design spreads light for maximum dispersion
• Encapsulant potting for total circuit board protection
• Hermetic lens-to-housing seal
• Advanced Pin Connection System uses tin-plated, solid brass pin terminals

TECHNICAL SPECIFICATIONS
Material: Acrylic / ABS
FMVSS:
S/T/T – I, P2, S, T
Auxiliary – P2
Finish: Red/ Yellow
Voltage Amp: Red – 12V / .24(I,S)/.03(T) A
Voltage Amp: Yellow – 12V / .15(P2) A
Voltage Amp: Red – 24V / .24(I,S)/.03(T) A
Voltage Amp: Yellow – 24V / .12(P2) A

CROSS REFERENCE:
GRO 53292
7376-53292
GRO53292
ZBJ53292
ZBJD53292
GR53292
M418R2
V418R2
LED40FR19
GRO 53292
GT53292
44036R
44036R1
44096R
44302R
44322R
44326R
44983R
44986R
4467
4468

Additional Information
Weight1 lbs

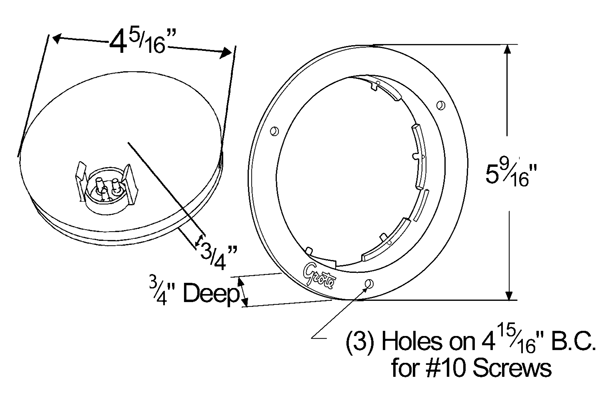

Dimensions6 × 6 × 2 in
Manufacturer

Grote

Product ID

53292
