$237.23

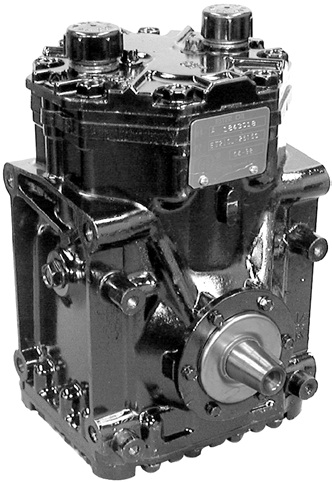

RedDot 75R7290 Compressor – CCI W/Ester Tube TL210L-21160

PRODUCT SPECIFICATIONS:

  • Red Dot Part No.: 75R7290
  • Red Dot Factory Part No.: RD-5-8638-0P
  • OE Model Part No.: ET210L-21160, ET210L-25061, ET210L-25150, 99244-5
  • Air Source Part No.: 5256
  • Alliance Part No.: ABP N83 04061T, ABP N83 304031, ABP N83 304131, ABP N83 304451, ABP N83 304461, ABP N83 304471
  • Bergstrom Part No.: 525742
  • Caterpillar Part No.: 232-9198
  • Climatech Part No.: KA1095, LC1010, LC1015, LC1020, LC1130, LC1140, LC2100
  • Ford Part No.: D4FZ-19703B, D9ZZ-19V703A
  • Freightliner Part No.: 22-41170-000, 22-46102-000, 22-47510-000, 488-21001, CFCET210L-25150S
  • IHC – Navistar Part No.: 1-9254, 2000820C91, 2502459C91, 2509452C91, 2509453C91, 2509456C91, 468323C91, 468323C92, 554712C91
  • Jbar Part No.: 405881
  • Paccar Part No.: 488-21097, 488-21909, K318-119, K318-119-3, K318-137-2, K318-137-3, K318-149-2
  • Mack Part No.: 206RD34, 4379-RD586380, 793-25150
  • Truck Air Part No.: 03-3402
  • Volvo Part No.: 3949850, 688-21946, RDHRD586380P
  • Application: Multi Fit Applications
  • Model: ET210L
  • Fitting Port Position: LH Suction
  • Volts: 12V
  • Fitting Size: 1” – 14
  • Clutch Type: Supplied without clutch
  • Gauge Line: N/A
  • No. of Wires: N/A
  • Connector Type: N/A
  • Bore: 1.875 (47.6mm)
  • Stroke: 1.876 47.4mm)
  • Displacement per Revolution: 10.3 cu. in. (170cc)
  • Number of Cylinders: 2
  • Maximum Allowable Continuous R.P.M. (Normal Operating Conditions): 6,000
  • Refrigerant: R-12/134A
  • Oil (PAG): 10 fl. oz. (200cc)
  • Weight: 14.6 lbs. (6.6 kg.)
  • Rotation: Clockwise or Counter Clockwise
  • Note: Universal, Standard Duty with Super Screws, Felt Ring, PRV and Ester Oil

Description

CROSS REFERENCE:
5256
ET210L-25150
1402002
1402013
402887
525742
232-9198
ET210L 25150
ET210L-21160
ET210-25061
ET210L-25150-C
LC2100
E-801510
E-801512
D4FZ 19703 B
58064
25150
ABP N83 304031
ABP N83 304061
CFCET210L
405881
ER210L-25150
LC2100
1402002
402887
4379-RD586380
5256
YC19
1676832C92
167683C92
200820C91
2502459C91
3949479
41788C91
20-10330
RD-5-8638-0P
RD5-8638-1P
992445
03-3002E
03-3402
300-7172
1119561
1119561/3949479
3949850
RDHR586380P

Additional Information
Weight15 lbs
Dimensions11 × 6 × 8 in
Manufacturer

RedDot

Product ID

75R7290
