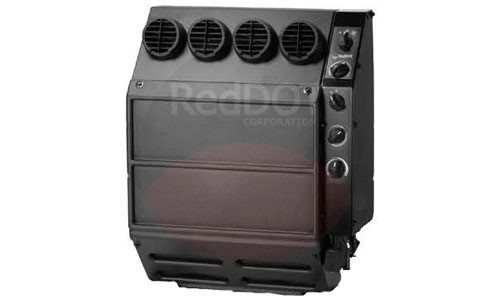

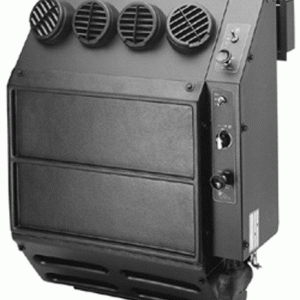

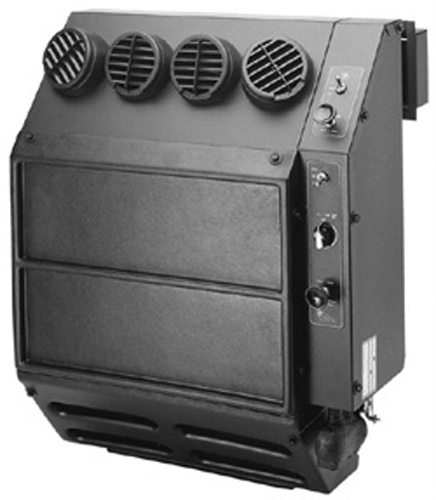

Red Dot On-Road 46,000/33,000 BTU 12 VDC – Rear Air Exhaust Outlet with Rotary Controls

Categories: ,
Description

PRODUCT SPECS:

  • Part No.: R-5045-5P
  • Volts: 12 VDC – Rear Air Exhaust Outlet with rotary controls
  • Capacity: Heating – 46,000 BTU/Hr @ 150°F (13.5 kW @ 66°C) water to air differential
  • Capacity: Cooling – 33,000 BTU/Hr with 36°F (9.7 kW @ 2.2°C) refrigerant temperature and 80°F (26.7°C) wet bulb entering air
  • Air Flow: 430 CFM (730 m3/h)
  • Motor: One three-speed
  • Current Draw: 22.5 amps @ 13.6 VDC (includes 4 amps for A/C clutch)
  • Applications: Armored cars, Rescue Vehicles and Personnel Carriers
  • Weight: 47 lbs. (21 kg)

Compressor, Mounting Kit, Installation Kit and other optional items not included.

Additional Information
Weight 52 lbs
Dimensions 32 × 24 × 16 in
