$335.49
Red Dot Compressor – 12V SD7H15 MD 152MM PV8 Direct Mount 4499
PRODUCT SPECS:
- Red Dot Part No.: 75R81412
- Red Dot Factory Part No.: RD-5-11310-0P
- Sanden Part No.: 4499, 4768
- Air Source Part No.: 5303
- Alliance Part No.: ABP N83 304364
- Case/Case – IH Part No.: 317008A3, 86992688, 86993463
- Mack Part No.: 4379-RD5113100
- Volvo Part No.: RDHRD5113100P
- Application: Farm & Off Road Applications
- Clutch: 6” (152mm) Poly 8
- Refrigerant Type: R134a
- Volts: 12V
- Sanden Model Type: SD7H15SHD
- Mount Type: Direct Long
- Head Type: MD
- Head Fitting Position: Horizontal Tube-O
- Head Fitting Size: 1” – 14
- Cubic Inches: 9.5
- Gauge Line: 49mm
- Connector Type: Female Weatherpak (IHC-Case)
- No. of Wires: 1
- Clutch Shaft Type: Key
Description

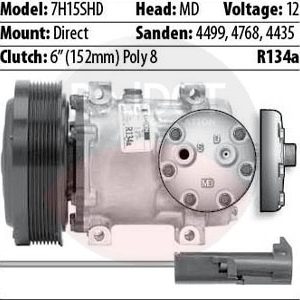

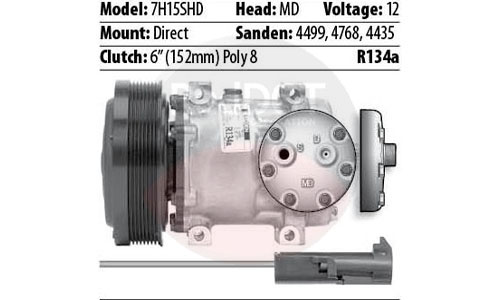

Red Dot 75R81412 Sanden Compressor SD7H15SHD
Model: 7H15SHD
Head: MD
Voltage: 12
Mount: Direct
Head Fitting Position: Horizontal Tube-O
Head Fitting Size: 1” – 14
9.5 Cubic Inches
Sanden: 4499, 4768, 4435
Clutch: 6” (152mm) Poly 8
R134a
CROSS REFERENCE:
58792
4379-RD5113100
5303
20-04768
20-04768-AM
RD5113100P
RD5113110P
4499
4768
RDHRD5113100P
Additional Information
| Weight | 23 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
| Manufacturer | RedDOT |
| Product ID | 75R81412 |
