$33.09

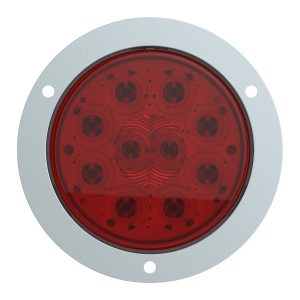

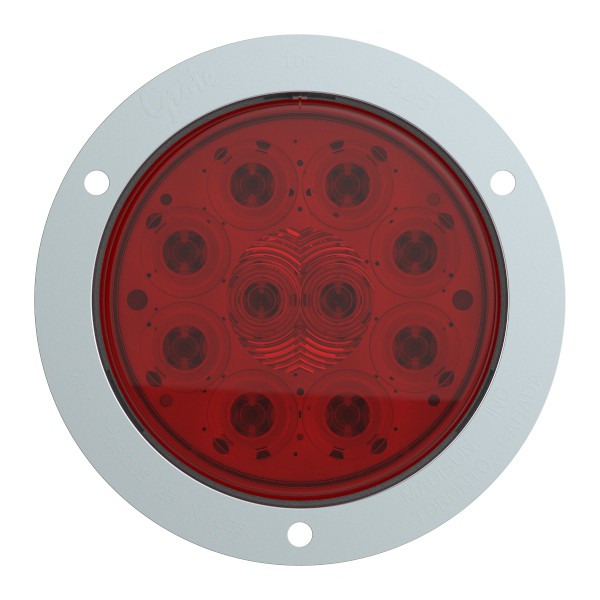

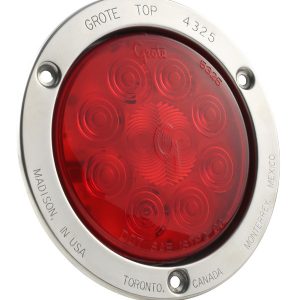

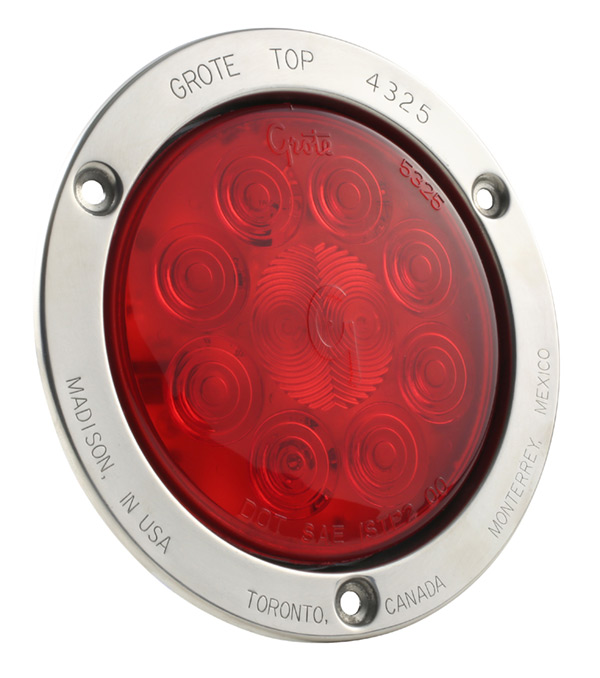

Grote SuperNova® 4″ 10-Diode Pattern LED Stop Tail Turn Lights – Red w/ Stainless Steel Theft-Resistant Flange



Description

MALE PIN STOP/TAIL/TURN:
Red w/ Stainless Steel Theft-Resistant Flange

FEATURES & BENEFITS
• Lens design spreads light for maximum dispersion
• Encapsulant potting for total circuit board protection
• Hermetic lens-to-housing seal
• Advanced Pin Connection System uses tin-plated, solid brass pin terminals

TECHNICAL SPECIFICATIONS

  • Material: Acrylic / ABS
  • FMVSS: S/T/T – I, P2, S, T
  • Auxiliary – P2
  • Finish: Red/ Yellow
  • Voltage Amp: Red – 12V / .24(I,S)/.03(T) A
  • Voltage Amp: Yellow – 12V / .15(P2) A
  • Voltage Amp: Red – 24V / .24(I,S)/.03(T) A
  • Voltage Amp: Yellow – 24V / .12(P2) A

Grote 53302

CROSS REFERENCE:
GRT53302
GRO 53302
7376-53302
GRO53302
ZBJ53302
ZBJD53302
GR53302
V418KR3
PTL4040RF
GRO 53302
GRO53302

Additional Information
Weight1 lbs
Dimensions6 × 6 × 2 in
Manufacturer

Grote

Product ID

53302
